OrbixXL Path Light

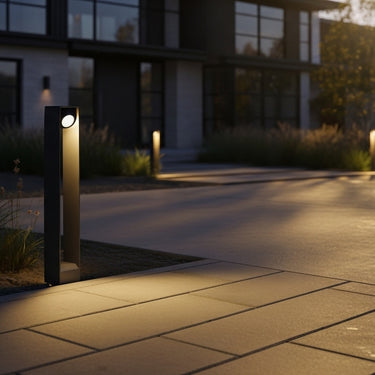

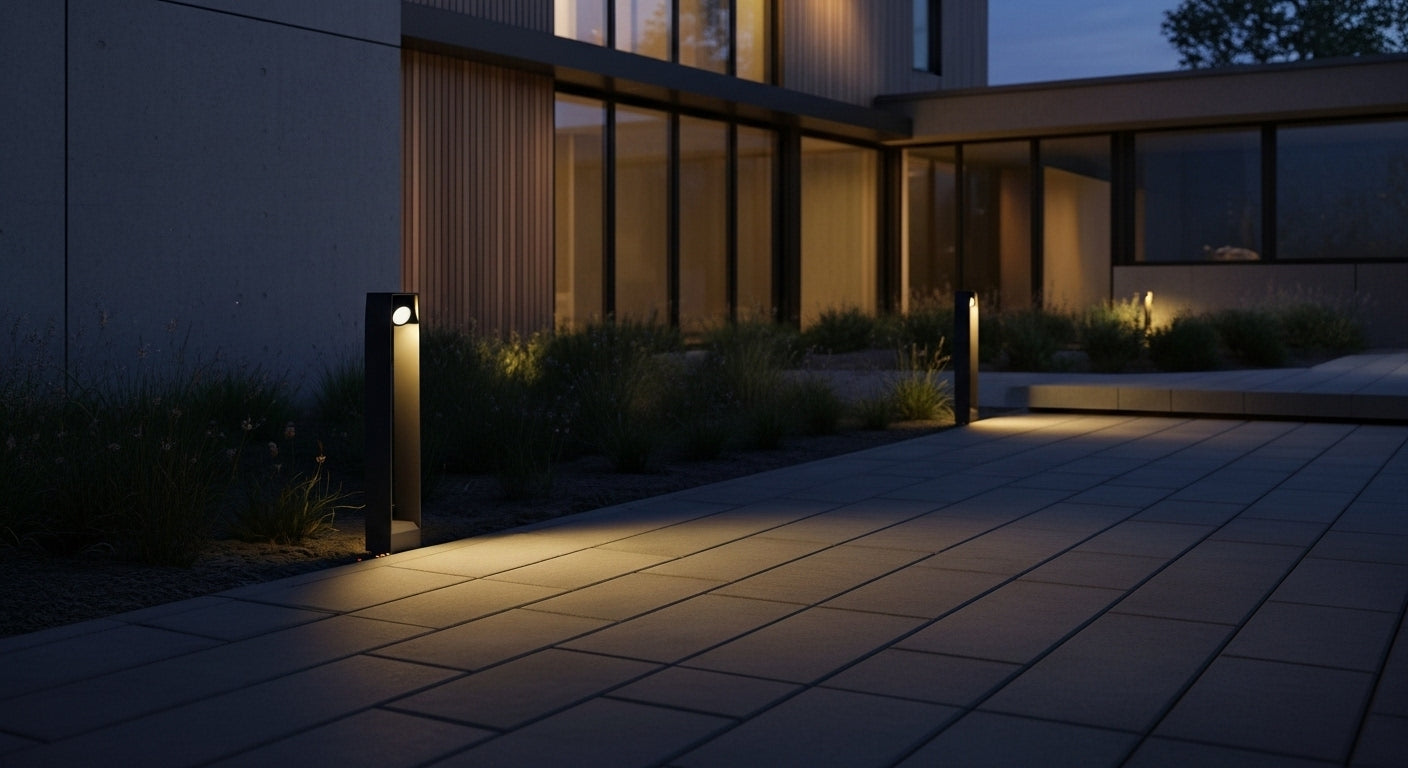

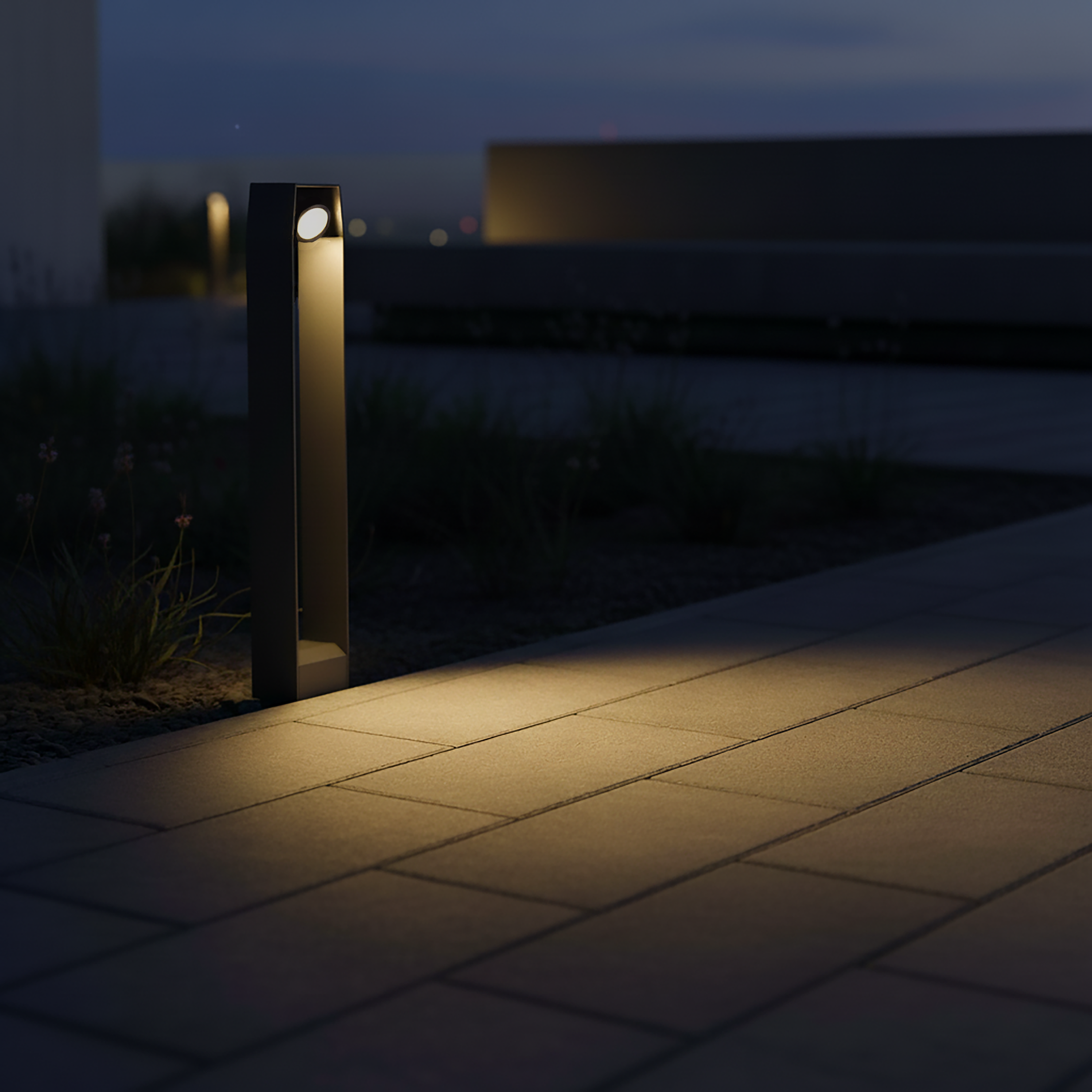

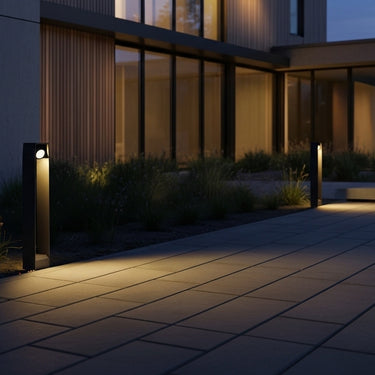

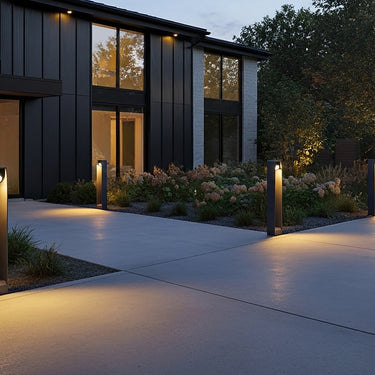

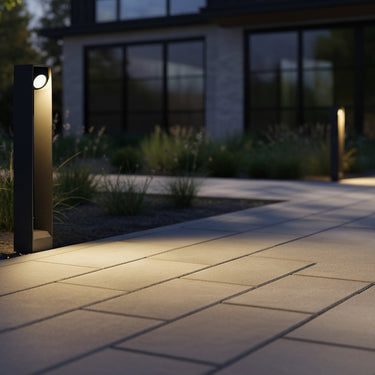

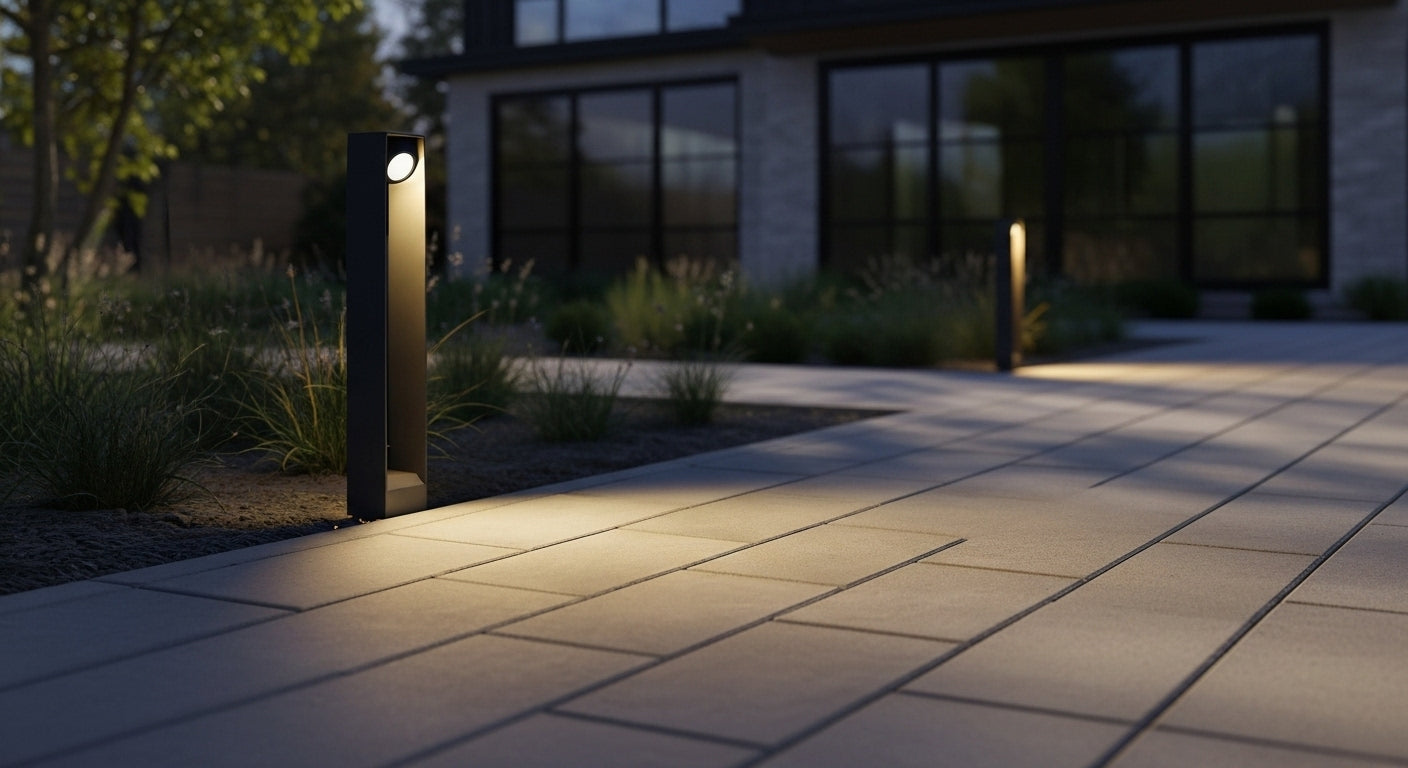

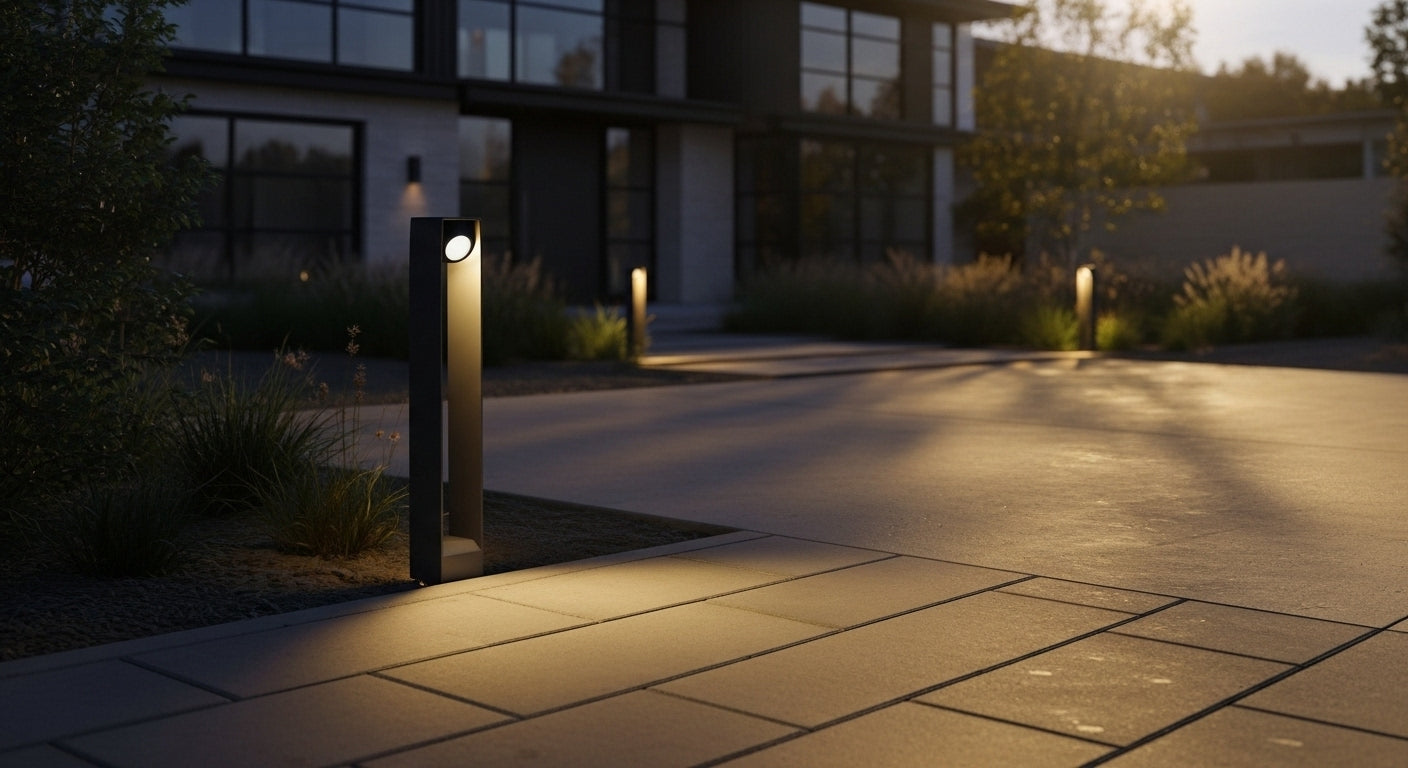

The OrbixXL commands attention with its bold form and refined illumination. Designed to make a lasting visual statement, this sleek 19.5” tall pathway fixture projects a warm 3000K triangular beam that enhances both safety and ambiance along walkways, driveways, and garden edges. Crafted from cast aluminum with a textured black finish, the OrbixXL combines modern styling with exceptional performance. Its integrated 3W LED delivers 190 lumens of soft, even light, while the adjustable LED source tilts up to 60° to achieve the perfect beam spread for any landscape layout. Featuring an 89+ CRI and 60° beam, the OrbixXL offers precise light control and flexible installation with its included stake, hexcell, and eyelid lens—built for lasting performance and backed by a 5-year warranty.
Specifications
Lamp: 1 Integrated CREE LED
Lamp Type: LED
Lens: Clear Convex Lens
LED: Watts / VA: 3W / 4.5VA
Beam Spread: 60°
Colour Temp / Lumen: 3000K
Lumen: 190
CRI: 89

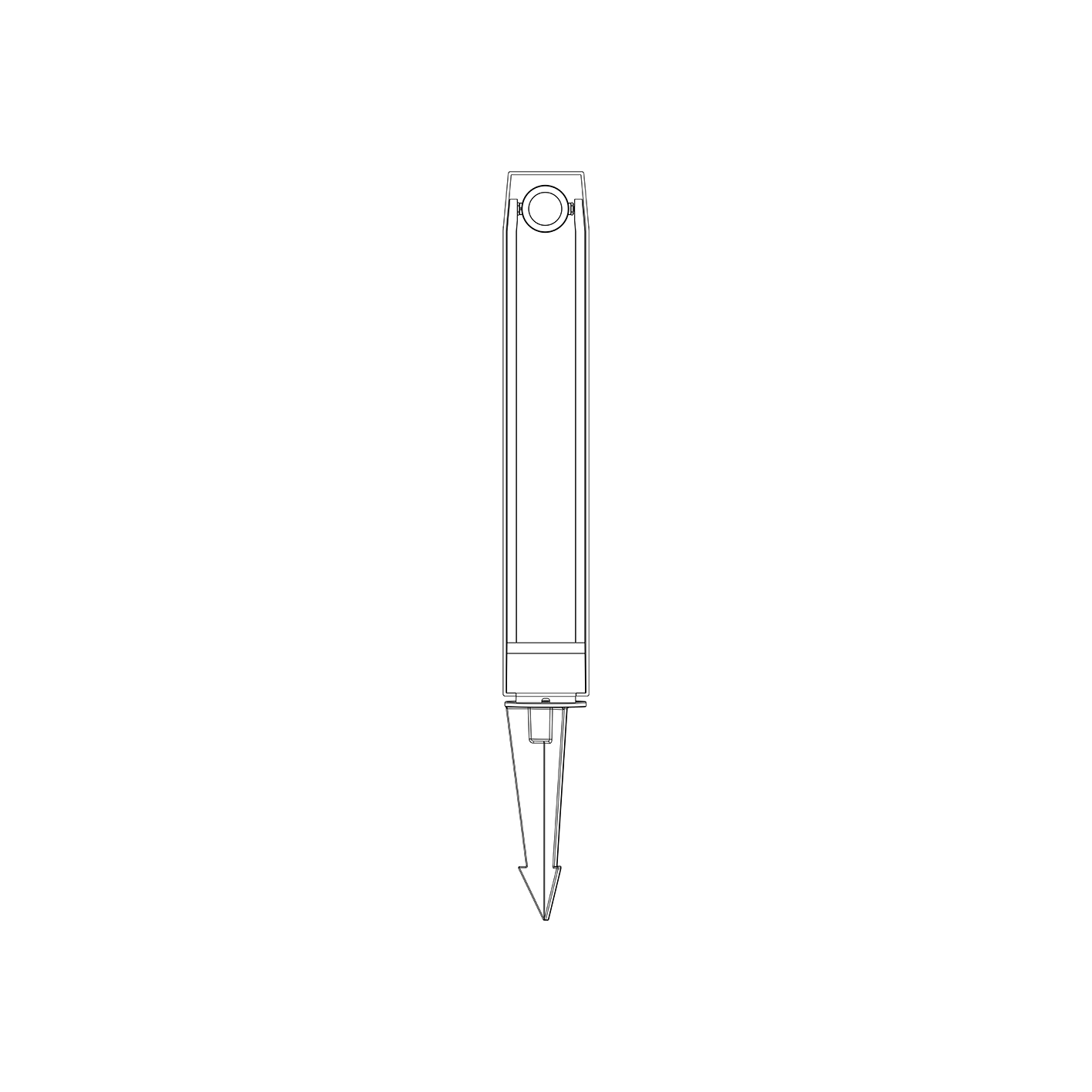

Dimensions: 19.5”H x 3.15”W
Primary Materials: Aluminum
Finish: Textured
Finish Colour: Black
Wiring: 72” of 18/2 cUL Rated
Input Voltage: 9 to 15VAC/VDC, Transformer Required
Operating Range: 9 to 15VAC/VDC, Not Dimmable
Installation: Exterior Only
Location Rating: Wet – IP65
Mounting: Surface Bracket Integrated
Weight: 1.5 lbs
Warranty: 5 Year
Made In: China
UPC: 788364337603
Spec Sheet
Engineered for Precision. Built to Endure.
Striker Lighting is dedicated to creating high-performance landscape lighting that transforms outdoor spaces after dark. Every fixture is crafted with durability, precision, and purpose — combining rugged black brass construction, stainless steel or corrosion-resistant aluminum with refined design to deliver lasting beauty and dependable performance. From pathways to gardens, Striker lights are built to illuminate and enhance the natural elegance of your landscape, night after night.
Key Design Elements
Why Use Striker For Your Next Project?
Built from
Black Brass, Aluminum
or Stainless Steel
Engineered
for Precision
Performance You Can Trust
Crafted for the Professional
Designed to Beautify the Night
FREQUENTLY ASKED QUESTIONS
Can I install the system myself?
Yes. 12V systems are designed for safe DIY installation. You’ll need a transformer, outdoor-rated wire, and fixtures. Simply connect, bury the wire just below the surface, and test. For larger systems, consulting a professional ensures perfect layout and voltage balance.
Do I need a transformer?
Yes. A low voltage transformer is essential to convert 120V household power to 12V. It also provides voltage regulation, timer control, and safety protection. Using a Striker Commercial Grade Transformer ensures stable power delivery and helps maintain consistent brightness across all fixtures.
How does voltage drop affect my lighting?
Voltage drop occurs when current travels through long wire runs, reducing light output at the end of the line. To prevent it, use thicker wire (12- or 10-gauge), keep wire runs balanced, and select a transformer with multiple voltage taps (12V–15V). Proper planning ensures even illumination across your landscape. Try our our Voltage Drop Calculator!
Are low voltage lights waterproof?
High-quality landscape fixtures are weather-sealed and rated for outdoor conditions—typically IP65 or higher. This means they can withstand rain, snow, and irrigation spray. Always ensure all connections are watertight and above grade to maintain long-term reliability.
How long do LED landscape lights last?
LEDs typically last 30,000 to 50,000 hours—that’s years of operation with minimal maintenance. They also maintain consistent colour temperature and brightness over time, unlike halogen lamps that dim or burn out frequently.
What wire gauge should I use?
For most systems, 12/2 landscape cable works best. Thicker wire reduces voltage drop and ensures consistent brightness across long runs. The proper gauge depends on fixture wattage, total distance, and transformer capacity.
